Plastic lifting block for casement window

The lifting block plays an important role in the stable operation, load-bearing protection, and sealing performance of the window sash. Its core function is to avoid problems such as sash sagging, jamming during opening and closing, and reduced sealing performance that are prone to occur in casement windows after long-term use.

A)Core functions: "Lightening the load" and "guiding" the window sash
The sash of a casement window is connected to the window frame via hinges or slider stays. After long-term use, the self-weight of the sash will gradually cause slight deformation of the hardware, leading to sash sagging. At this point, the gap between the sash and the frame widens, which not only causes air and water leakage but also leads to a sudden increase in frictional resistance during opening and closing, and even "jamming". The design logic of the lifting block is as follows:

B)Load distribution: By cooperating with the window frame and sash, it distributes part of the sash's self-weight to the frame structure, reducing the load on hinges/slider stays and delaying the aging of hardware;

C)Guiding and lubrication: Equipped with rollers (mostly made of stainless steel), it converts sliding friction during sash opening and closing into rolling friction, reducing resistance and making opening and closing smoother;

D)Precision alignment: Through the cooperation of fixed blocks and movable blocks, it guides the sash to move along a fixed trajectory, ensuring precise fitting with the frame when closed and enhancing sealing performance.

Structure and adaptation:

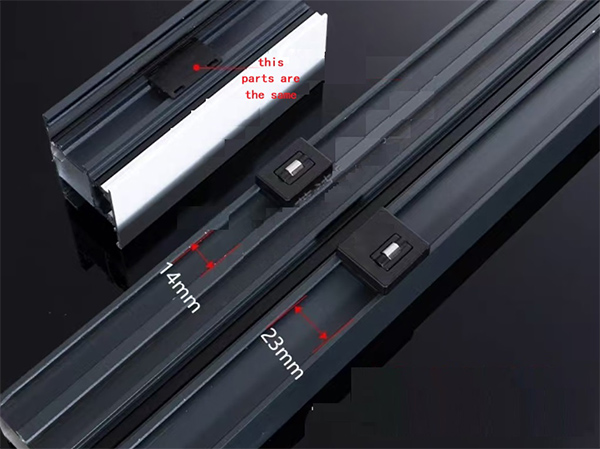

1) Quick-install European standard groove (C-groove);

2) K-groove (two adaptive types);

3) Simple lifting block;

4) Screw-fixed type

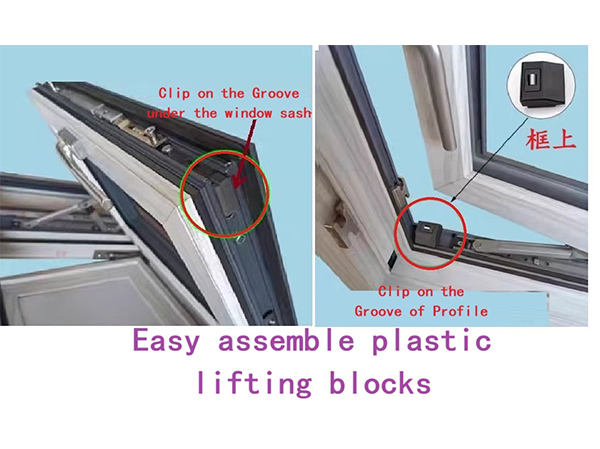

Fixed block: Installed on the profile of the window frame to ensure a stable guiding track for the movable block;

Movable block: Installed at the bottom of the window sash, and its position must be precisely aligned with the fixed block to ensure that the roller can smoothly fit into the track of the fixed block. When closing, the roller of the movable block slides along the track of the fixed block, assisting the sash in tightly fitting the frame; when opening, the roller drives the sash to separate smoothly, avoiding edge friction and jamming.

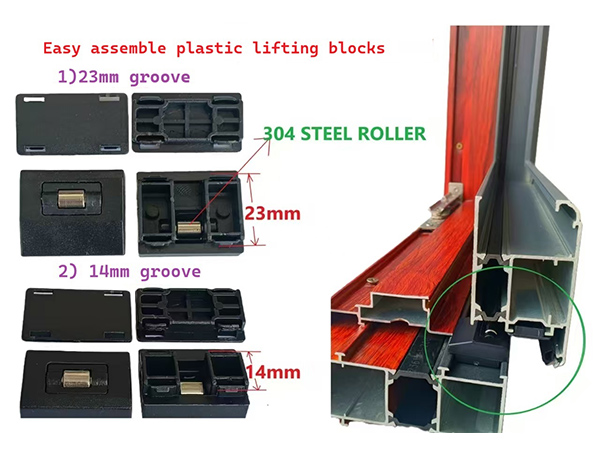

Key material: The plastic part is made of new nylon, and the "durability secret" lies in the stainless steel roller, which is the "core" of the lifting block.

packing : 200set each in a polybag, 2000 pcs in a woven bag

moq: 10000 pcs require

Application: For all casement window

FAQ

Q: Are you a factory or trading company?

We are a factory with designing, manufacturing, marketing and exporting together with our office.
Q: How can you guarantee the quality?

Always a pre-production sample before mass production;Always final Inspection before shipment;

Q: why should you buy from us not from other suppliers?
Good location : FactoryLocated in Jiangxi province, inland of China with cheaper production cost
Professional R&D Dept,100% on-time delivery
Warranty 2 years ,100% after-service ensuranceand Rich experienceSince 2012
Samples are free worldwide,Strict quality control
Q: I didn’t find I want, can you OEM to me? What about minimum order quantity?

Yes, we are a professional OEM manufacturer withmore than 20 years' experience,with more than 20 automatic injection machine and 100 skilled workers
Q: When can I get the price?

We usually quote within 8 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q: Can you make customized products?

Yes, customized product is welcome, please provide drawing or sample..

Installation Location
